Communication Driver

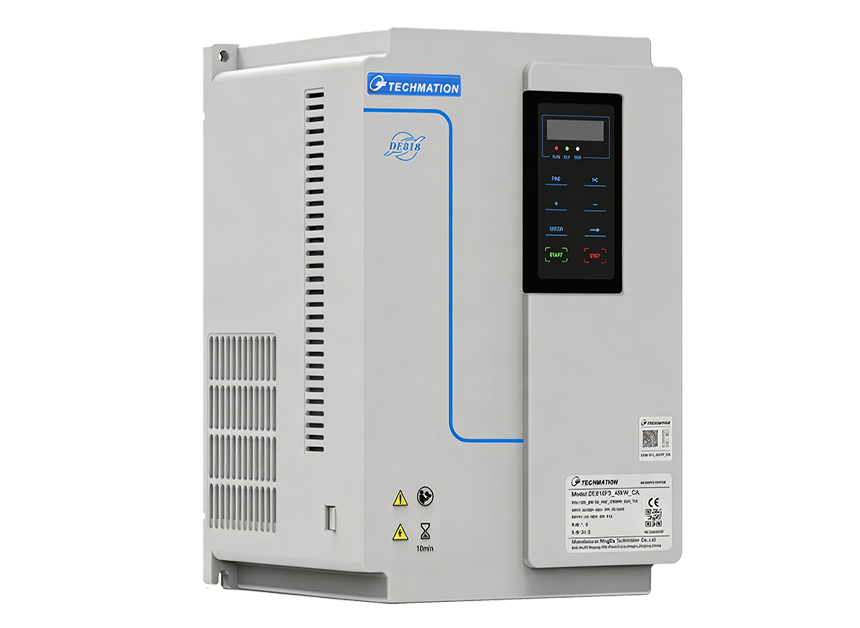

DE818 Series

DE818 Series Servo Drive enables digital communication with the host computer, allowing for various motion control  functions. Following a compact design concept, it features small overall dimensions, saving space in the electrical control  cabinet.

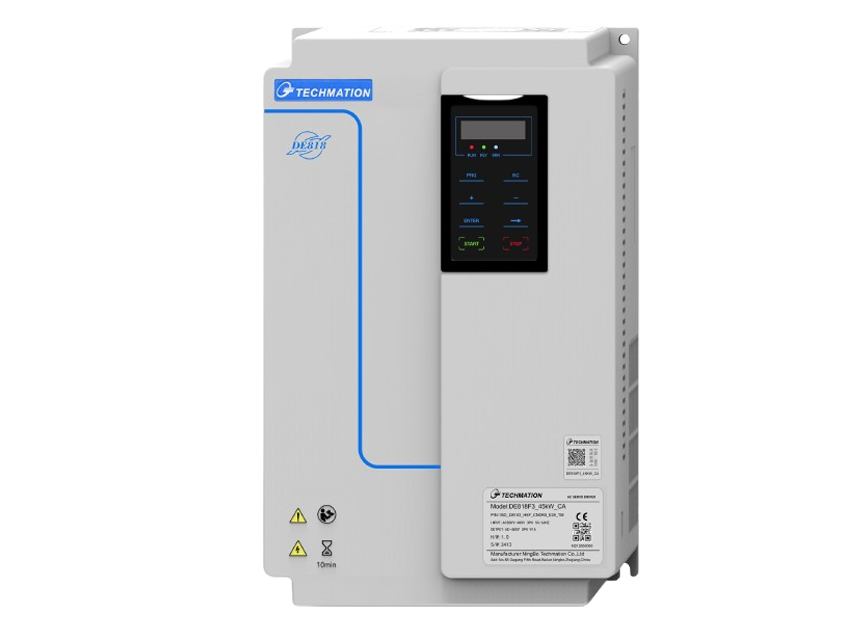

- DE818 30kW -

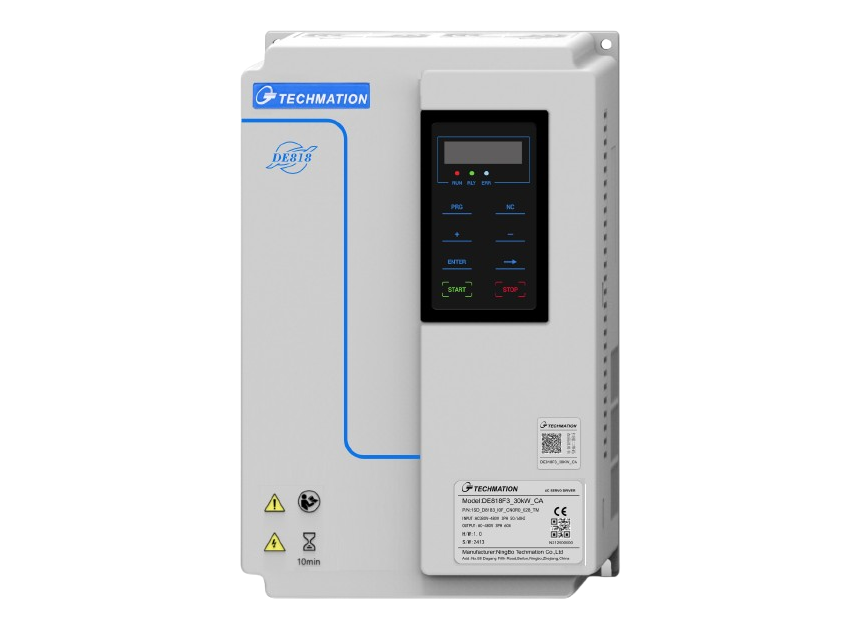

- DE818 30kW -

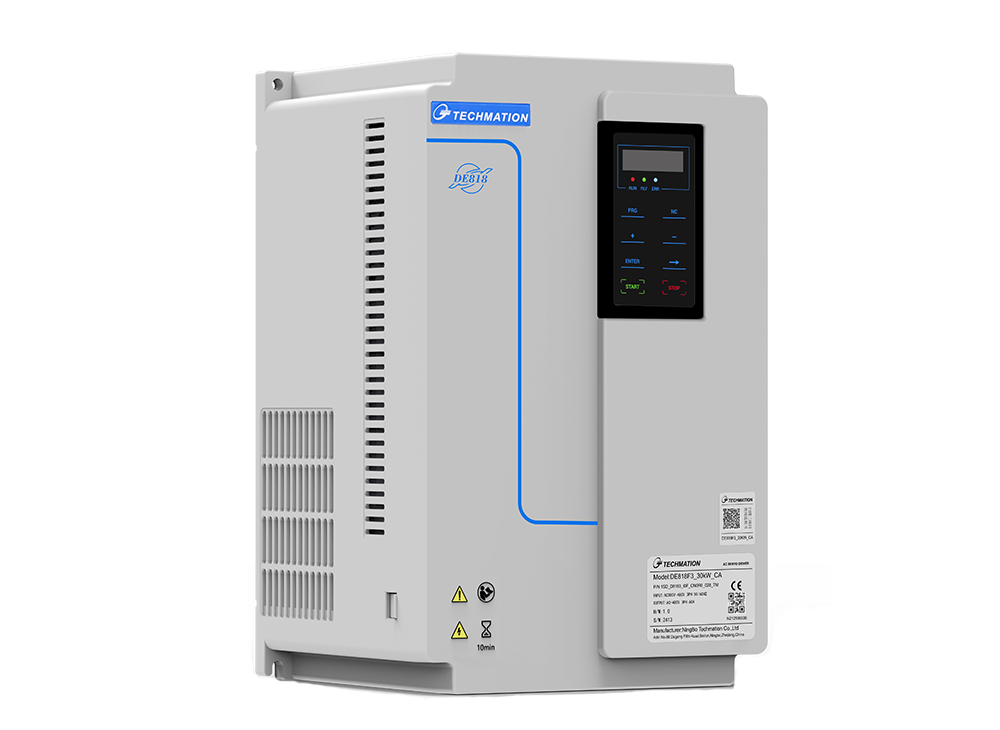

- DE818 45kW -

- -

Advantage

    • Enhanced Performance, Precise Control, Simplified Operation Include an operation panel to facilitate commissioning.
      With a high-speed DSP , achieving increased processing speed and storage capacity.
      Quick switch between linkage and follow-up control modes; diverse control modes to accommodate various application requirements.
      AUSTONE control platform, bringing better control algorithm and accuracy.
      Allow digital communication via NET, CAN, SA-BUS, and other protocols with the master computer; this enables more visual data monitoring and modification.

    • Multiple Protection Disconnected network alarm.
      Comprehensive protection and monitoring, including a variety of safeguard functions including short circuit, overcurrent, overvoltage, undervoltage, and etc.
      Add the function to set the speed-rising edge delay.
      Dust prevention, an independent air duct, and rapid fan replacement without disassembly.

    • Standard EMC Design, Certified by CE

Parameters

Model

Input Voltage/V

Output Power/kW

Rated Current/A

DE818F3-5.5kWX_XX

AC 3PH

380~480V

（-15%~10%）

5.5

13

DE818F3-7.5kWX_XX

7.5

17

DE818F3-11kWX_XX

11

25

DE818F3-15kWX_XX

15

32

DE818F3-18.5kWX_XX

18.5

37

DE818F3-22kWX_XX

22

45

DE818F3-30kWX_XX

30

60

DE818F3-37kWX_XX

37

75

DE818F3-45kWX_XX

45

91


*Note：Regarding the 220V specification in more detail,please contact us.

Technical Parameters

Input Power

Input Voltage（V）

AC 3PH 380~480V (-15%~10%, 380V Driver)

AC 3PH 220V (-10%~20%, 220V Driver)

Input frequency（Hz）

50Hz/60Hz

Output Power

Output Voltage（V）

0~480V

Output Power（kW）

Please refer to “Rated Value”

Output Current（A）

Control Performance

Control Method

Closed loop vector control

Motor Type

AC permanent-magnet synchronous motor

Control Mode

Pressure closed-loop mode, speed mode

Maximum Output Frequency

300Hz

Pressure/Flow Command Setting

SABUS

Overcurrent Capacity

Up to 2.0 times

Overload Capability

At 4kHz carrier wave:

120% rated current for 30 minutes

150% rated current for 90 seconds

180% rated current for 8 seconds

 200% rated current for 1 second

Peripheral Interface

Analog Input

1 ，DC0~10V

Digital Switch Input

2

Digital Switch Output

4

Encoder Interface

Resolver

Communication Interface

Communication Interface

EtherNET; SABUS

Protective Function

Protective Function

Overcurrent, overvoltage, undervoltage, phase loss, overtemperature, overload, etc

Others

Installation

Support wall mount

Operating Ambient Temperature

-10°C~50°C (Derate when above 40°C)

Protection Class

IP20

Type of Cooling

Forced air

Braking Unit

Built-in

Brake Resistor

Optional, externally installed

Reactor

37~45kW built-in DC reactor
