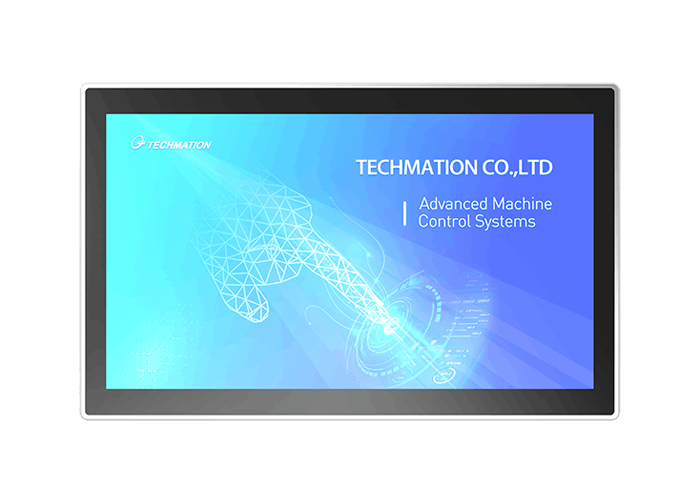

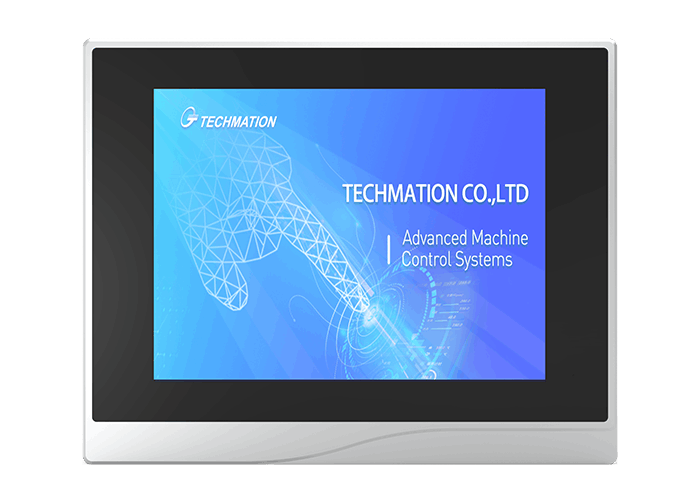

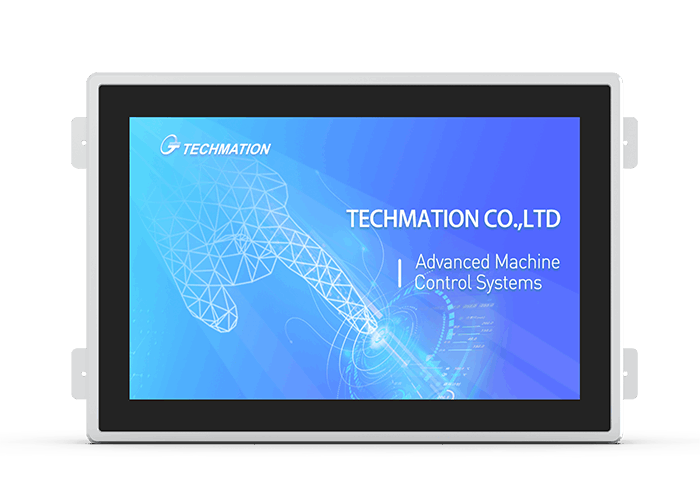

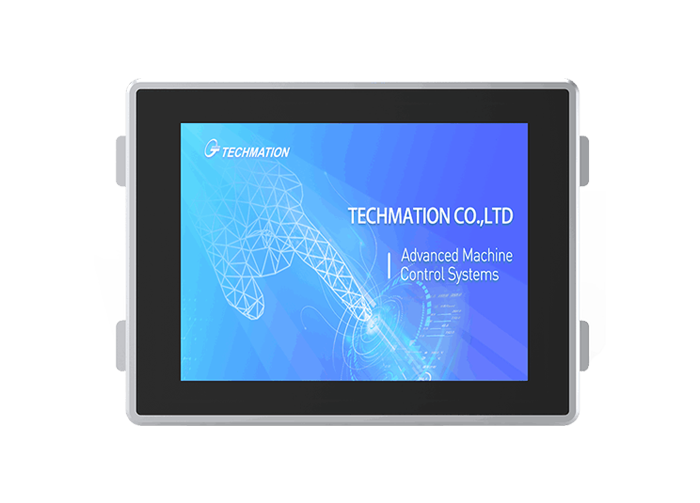

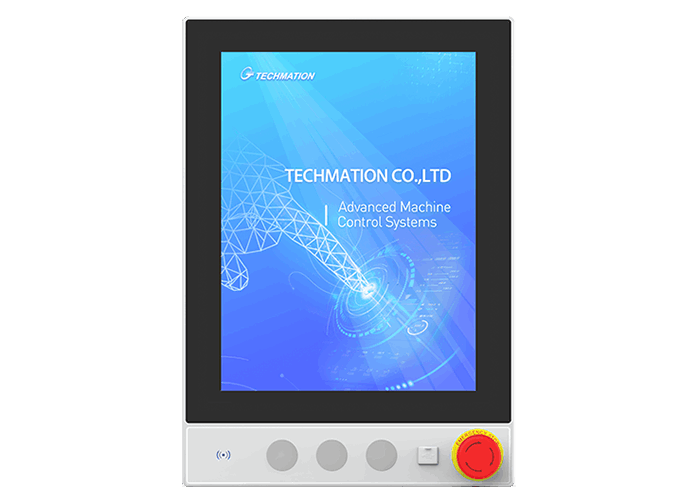

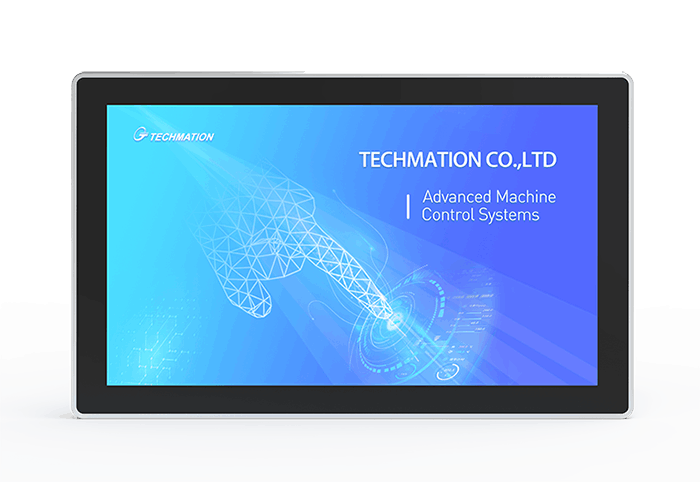

HMI for General Industrial Applications

With a touch screen designed for industrial use, featuring a modern and professional appearance.

The interface is visually appealing and of high quality. featuring a straightforward and user-friendly interface that requires no specialized training for operation.

Supports integrated display and control functionality.

Items	Specifications
Size W (mm)*H (mm)	215*164.5
CPU Frequency	800MHz
LCD Display	8.0 LCD CTS
LCD Resolution	800*600
Baud Rate	10/100Mbps
Operating Temperature	-10℃~50℃
Storage Environment	-20℃~85℃/85%RH
Communication Port	NET, RS232, CAN
Memory Card Port	USB

Items	Specifications
Size W (mm)*H (mm)	26018050
CPU Frequency	1.2GHz 4-core
LCD Display	10.1" LCD CTS
LCD Resolution	1280*800
Baud Rate	10/100Mbps
Operating Temperature	-10℃~50℃
Storage Environment	-20℃~85℃/85%RH
Communication Port	NET, RS232, RS485
Memory Card Port	USB

Items	Specifications
Size W (mm)*H (mm)	339*270
CPU Frequency	800MHz
LCD Display	12.1" LCD CTS
LCD Resolution	800*600
Baud Rate	10/100Mbps
Operating Temperature	-10℃~50℃
Storage Environment	-20℃~85℃/85%RH
Communication Port	NET, RS232, CAN
Memory Card Port	USB

Items	Specifications
Size W (mm)*H (mm)	300*426
CPU Frequency	1GHz
LCD Display	15.0" LCD CTS
LCD Resolution	1024*768
Baud Rate	10/100Mbps
Operating Temperature	-10℃~50℃
Storage Environment	-20℃~85℃/85%RH
Communication Port	NET, RS232, CAN
Memory Card Port	USB

Items	Specifications
Size W (mm)*H (mm)	38324052.5
CPU Frequency	1.2GHz 4-core
LCD Display	15.6" LCD CTS
LCD Resolution	1920*1080
Baud Rate	10/100Mbps
Operating Temperature	-10℃~50℃
Storage Environment	-20℃~85℃/85%RH
Communication Port	NET, RS232, RS485
Memory Card Port	USB

Items	Specifications
Size W (mm)*H (mm)	485282.554.6
CPU Frequency	1.2GHz 4-core
LCD Display	18.5" LCD CTS
LCD Resolution	1920*1080
Baud Rate	10/100Mbps
Operating Temperature	-10℃~50℃
Storage Environment	-20℃~85℃/85%RH
Communication Port	NET, RS232, RS485
Memory Card Port	USB

Items	Specifications
Size W (mm)*H (mm)	526.6317.655
CPU Frequency	1.2GHz 4-core
LCD Display	21.5" LCD CTS
LCD Resolution	1920*1080
Baud Rate	10/100Mbps
Operating Temperature	-10℃~50℃
Storage Environment	-20℃~85℃/85%RH
Communication Port	NET, RS232, RS485
Memory Card Port	USB
