Universal Servo Drives

ID810 Series

ID810 Series Servo Drive is designed for hydraulic servo applications. It supports pressure closed-loop control and speed mode. Following a compact design concept, it features small overall dimensions, saving space in the electrical control cabinet.

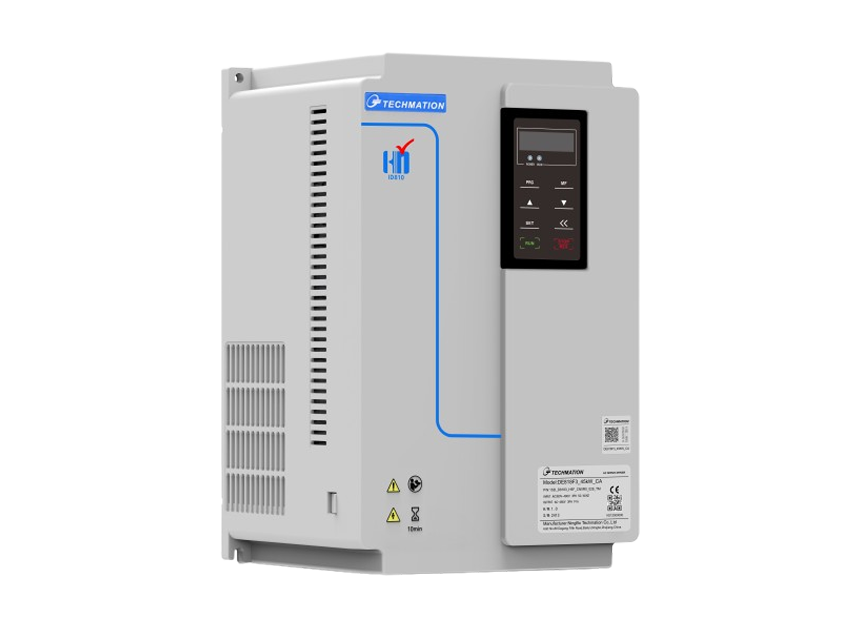

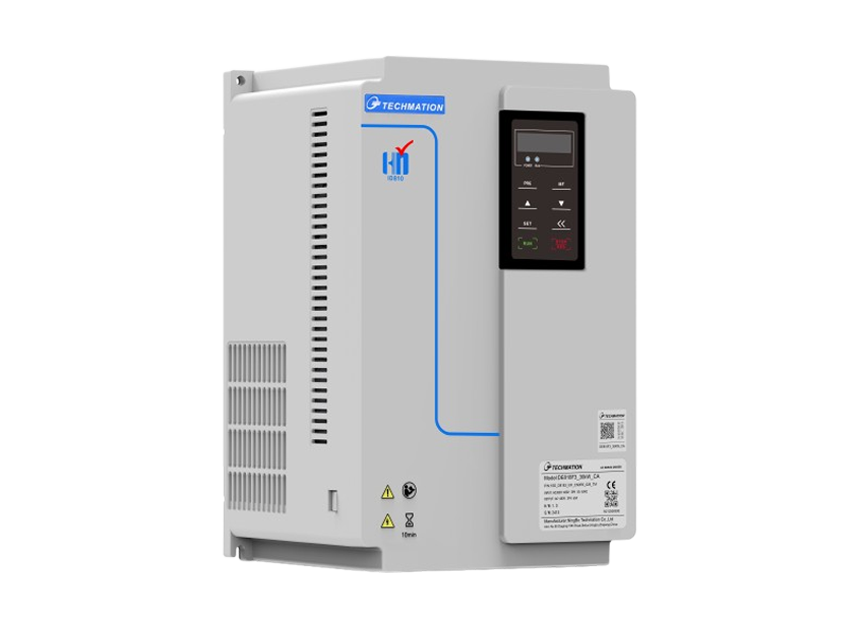

- ID810 30kW -

- ID810 30kW -

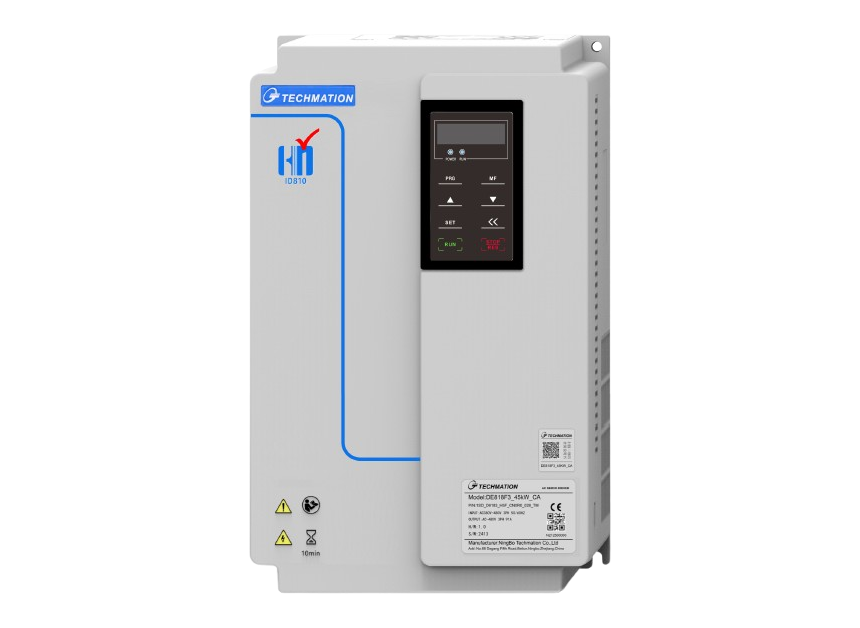

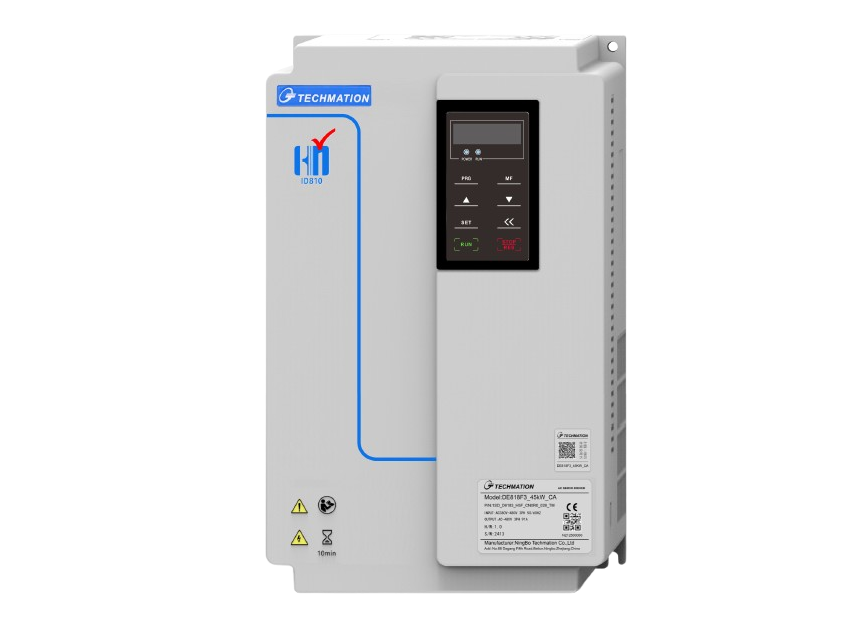

- ID810 45kW -

- ID810 45kW -

Advantage

    • Wide voltage input Support 220V AC to 480V AC

    • Small size Small size, reducing the space needed to install electric control boxes for small machines

    • Multiple control modes available Pressure closed-loop, speed mode , V/F mode , sensorless position control mode

    • ADRC (Active Disturbance Rejection Control) ADRC (Active Disturbance Rejection Control), solving the overshoot problem

    • New over-modulation SVPWM technology New over-modulation SVPWM technology improves the field weakening performance and overload capacity of the drive

Parameters

Model

Input Voltage/V

Output Power/kW

Rated Current/A

ID810F3-5.5kWX_XX

AC 3PH

380~480V

(-15%~10%)

5.5

13

ID810F3-7.5kWX_XX

7.5

17

ID810F3-11kWX_XX

11

25

ID810F3-15kWX_XX

15

32

ID810F3-18.5kWX_XX

18.5

37

ID810F3-22kWX_XX

22

45

ID810F3-30kWX_XX

30

60

ID810F3-37kWX_XX

37

75

ID810F3-45kWX_XX

45

91


*Note：Regarding the 220V specification in more detail,please contact us.

Technical Parameters

Input Power

Input Voltage（V）

AC 3PH 380~480V (-15%~10% )

AC 3PH 220V (-10%~20% )

Input Frequency（Hz）

50Hz/60Hz

Output Power

Output Voltage（V）

0~480V

Output Power（kW）

Please refer to “Rated Value”

Output Current（A）

Control Performance

Control Method

Closed-loop vector control

Type of Motor

AC permanent magnet synchronous motor

Control Mode

Pressure closed-loop mode, speed mode

Maximum Output Frequency

300Hz

Pressure/Flow Command Setting

Analog, Internal Setting, Ethernet Setting

Overcurrent Capability

Up to 2.0 times

Overload Capability

At 4kHz carrier wave:

120% rated current for 30 minutes

150% rated current for 90 seconds

180% rated current for 8 seconds

200% rated current for 1 second

Peripheral Interface

Analog Input

3 channels, DC0~10V

Analog Output

2 channels，DC0~10V

Digital Switch Input

6

Digital Switch Output

4

Encoder Interface

Resolver

Communication Interface

Communication Interface

EtherNET; CAN_BUS; RS485 (Optional)

Protective Function

Protective Function

Overcurrent, overvoltage, undervoltage, phase loss, overtemperature, overload, etc

Others

Installation

Support wall mount

Ambient Operating Temperature

-10°C~50°C (Derate when above 40°C)

Protection Class

IP20

Type of Cooling

Forced air cooling

Braking Unit

Built-in

Brake resistor

Optional, externally installed

Electric reactor

37~45kW built-in DC reactor
